Description

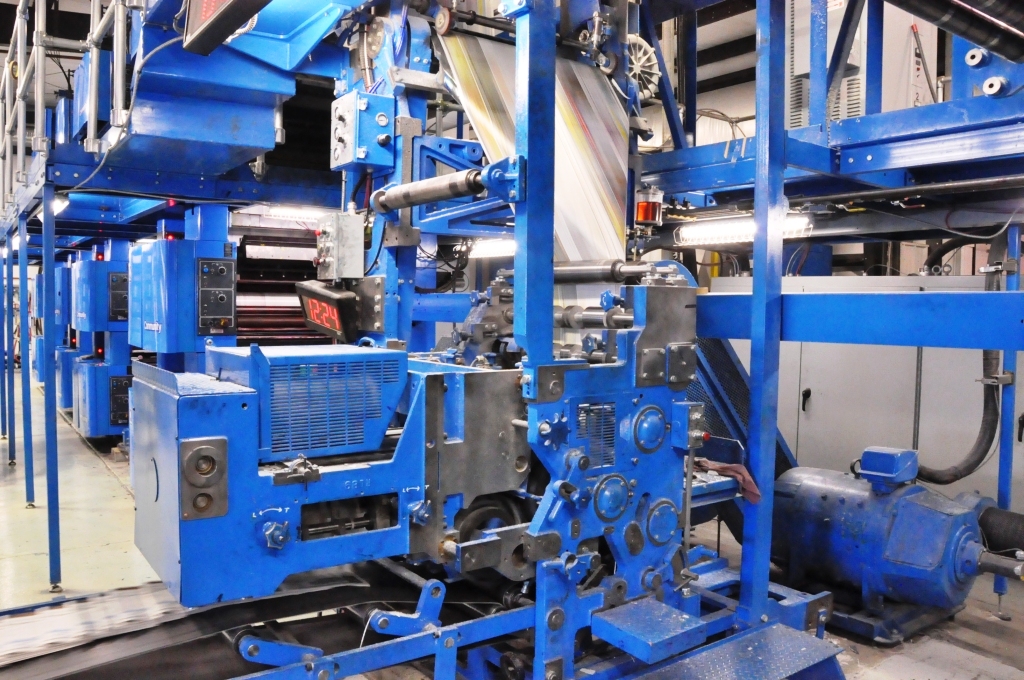

Ten Tower Goss Community SSC PRESS
21-1/2″ CUT-OFF
Excellent Press installed mostly new in 2010
to print the high-quality nationwide newspaper – Globe & Mail.
Pride of ownership is evident.
- Low Drive—Standard height towers
- Unit pneumatic throw off functions
- One Way Water Systems at each unit
- Sock dampening with water motors at each pan
- Operator side central grease lubrication
- Impression cylinders are solid stainless steel
- Slot-style plate cylinders with no center pin for .012” plates with no packing
- T-bar style blanket cylinders standard diameter
- Perretta Remote Inking, Four Consoles model NP2500 and Digital Preset
- Motorized Running Circumferential Register by Perretta with closed loop
- Motorized Sidelays by Perretta with closed loop
- Motorized Phasers for unit to unit register by Perretta with closed loop
- Top iron structures to support camera stands with motorized comps
- Two Prime UV Two Lamp 600 Watt systems integrated into new Top Iron
- Self-arming Ultrasonic Web Break Detection by US Automation
- Ink Max IM 1000 Ink Levelers by US Automation at 64 cold set ink locations
- Continuous wider catwalk, railing and stairs
- Gear side third level catwalk, railing and stairway to second level
- Fixed guards at nip points and interlocked moveable guards
- Double hinged barn doors on operator side of unit
- Two SSC Jaw Folders, Reconditioned in 2010—eight web capacity
- Two Upper Formers, Half and Quarter Fold, Air Formers, Two sets of Nips
- Reverse Fly Delivery, Under Folder Leads, RTF and Nose Side Top Iron
- New Pneumatic Trolleys upper and lower formers
- One Goss Urbanite Folder, Reconditioned in 2010– Ten web capacity
- Flying Tucker design Half Fold only for big broadsheet newspapers
- Two Sets of Nips, Upper Former, Pneumatic Trolleys upper and lower
- Ten Enkel 1040-45 Zero Speed Splicers, Reconditioned in 2010
- Arranged as Five Tandem Sets, Air Shafts, Five Dual Web Bi-directional Turn Bars, Five Blowers, Remote Sidelay and Tension for each Splicer at Console
Auxiliary Items Included;
(5) 150 HP New Digital Drive Systems with parallel and reverse feature
▪ Five 150 HP DC Motors Plus One Spare 150 HP Motor
▪ Nine Self Supporting Thomas Clutches with automatic switching
▪ Two remotely fired Horton Air Clutches
▪ Push button at consoles plate change mode with reverse
▪ All necessary components to make a complete and functional system
(2) Master Operator Consoles with touch screens and all press functions
(4) Master Flow Auto Mix – Chiller – Pump Systems (2 UV and 2 Cold)
(2) Bay Windows WSBW-w/B 3 RTL plus 2 over & WSBW-w/B 3 LTR
Two Automatic Burgess Plate Benders (1 sold)
*So much to list! See accompanying flyers for more detail.*
All Necessary Connecting Parts to make a Complete Press
